Equipment
Qemat Najd Oil Wells Services Company is a fully owned Saudi company (LLC) which was
established in 2012 with a vision and a plan to localize the slickline services.
Facilities
New Dammam base, office and workshop delivered March 2017
Purpose built 1
st class facility with state of the art Pressure Test Bay
General

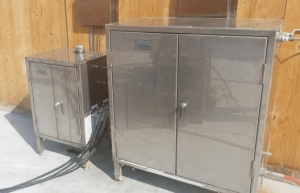

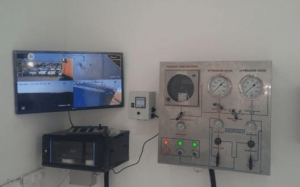

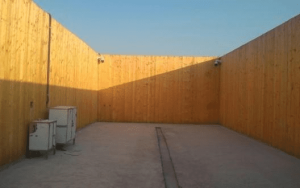

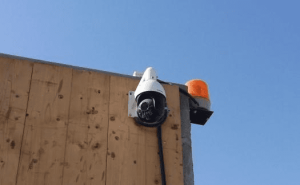

Pressure Test Bay
Welcome to our state-of-the-art Pressure Test Bay (PTB) facility! As a leading company in the industry, we take pride in owning and operating this cutting-edge testing facility that ensures the safety and reliability of high-pressure equipment and components.
Wash Bay
Introducing our exceptional Wash Bay facility! As a trusted company providing top-quality services, we take great pride in offering a dedicated space for cleaning and maintaining all our vehicles.
Major Equipment, Current & Planned
Equipment Type
Description
Current
Planned
Land Line Unit
Onshore Slickline unit
0
0
Slim Line Unit
Onshore Slickline unit
0
0
HD Fishing Unit
0.160’’ wire Heavy Duty Unit
0
0
HD Fishing Unit
5/16” Braided Cable Fishing Unit
0
0
Elmar PCE 4″
Pressure Control Equipment
0
0
Elmar PCE 5″
Pressure Control Equipment
0
0
Elmar PCE 7″
Pressure Control Equipment
0
0
Triplex Pump
Back side pressure test pumps
0
0
Downhole Gauges
Pressure & Temperature Recorders
0
0
MPLT
Memory Production Logging Tool
0
0
Multi Finger Caliper
Memory Caliper
0
0

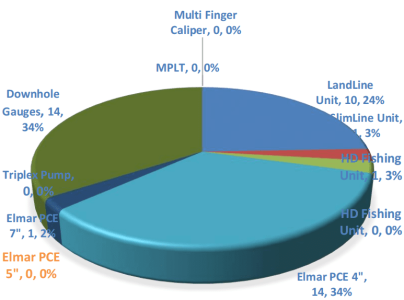

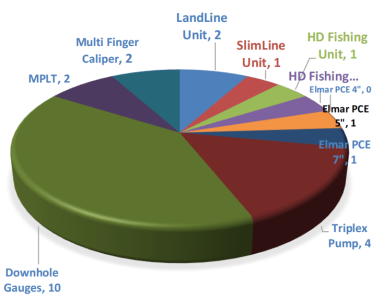

MAJOR EQUIPMENT CURRENT
MAJOR EQUIPMENT PLANNED
Have Any Questions ?
Equipment

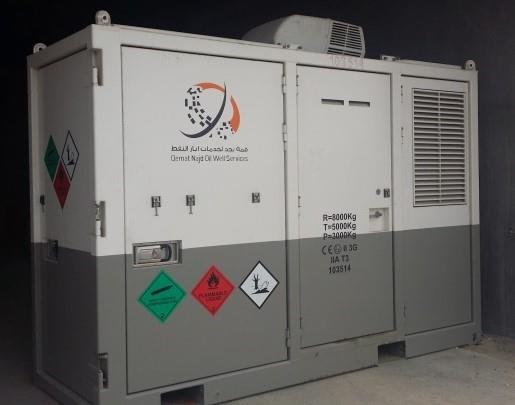

NOV ASEP LandLine Unit
LandLine Unit, three
compartment containerised
unit, with engine bay, cabin
and winch bay. Double drum,
both drums configured for
0.125″ Slickline wire. And HD
unit equipped with 0.160’’
wire
NOV Elmar PCE 4″
4.06” ID Light Weight PCE set, sour service, 10K WP, 15K TP, 6.125”-4×2 (4.75) QUs, supplied by NOV Elmar as a brand new PCE.
NOV Elmar PCE 5″
5.12” ID Light Weight PCE set, sour service, 10K WP, 15K TP, 7.875”-4×2 (6.12) QUs,planned to be supplied by NOV Elmar
NOV Elmar PCE 7″
6.375” ID PCE set, sour service, 10K WP, 15K TP, 11.500”-4 (8.25) QUs, supplied by NOV Elmar

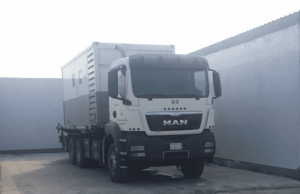

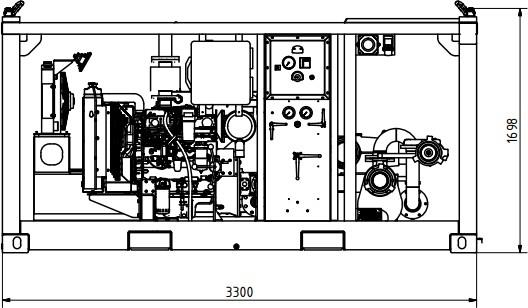

Koller Triplex Pump
Koller manufactured, truck
mounted skid, triplex pump,
10Kpsi, 38 lt/min, 2” 1502
outlet, fluid tank, 93 HP Cat
6810 diesel engine, chart
recorder, centrifugal lift pump, 50psi, 800 lt/min, 2” 1502 outlet

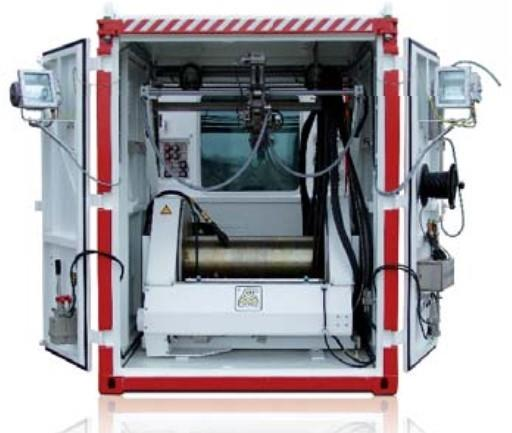

NOV ASEP SlimLine Unit
Offshore skid mounted double
drum Slickline unit, zone 2,
both drums configured for
0.125″ Slickline wire, supplied
by NOV Elmar, model SlimLine
Sondex MPLT or Equivalent
Memory production logging
services use a range of
combinable sensors to provide advanced measurements, with the same accuracy and quality as those from the real-time
configuration, when logistical, operational or Downhole constraints prevent use of the surface readout (SRO) system

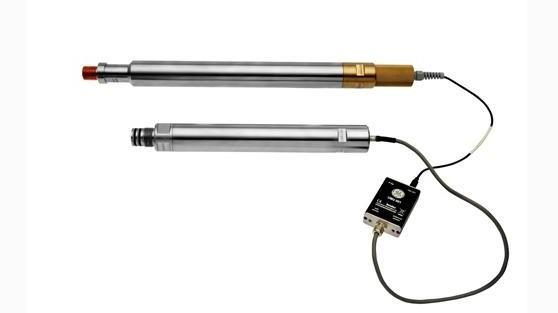

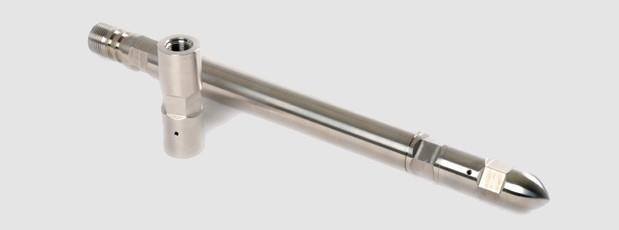

SPARTEK & KUSTER DH Quartz Gauges
The Spartek Quartz Memory Gauge has an integrated
quartz pressure transducer
and high temperature electronics making it highly accurate and stable, perfect
for critical well testing. It is designed for applications
where high-quality data is
required from a high temperature environment.

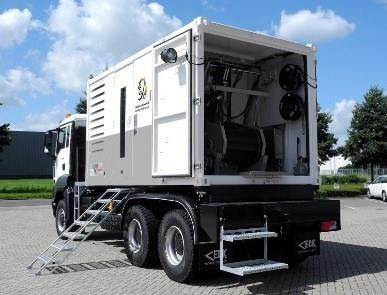

NOV ASEP HD
Fishing Unit
Single drum fishing unit, 3
compartment, truck mounted, rig safe, braided cable, 160HP, hydraulic open loop hydraulic system, planned to be supplied by NOV Elmar, model MultiLine

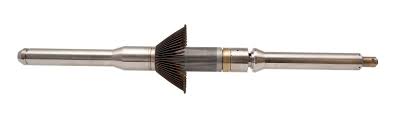

Sondex Multi Finger Caliper or Equivalent
The Sondex multi finger caliper has been designed to provide
the most accurate tubing
caliper measurements in the
industry. The high quality of
the data allows for 3-
dimensional imaging and the
calculation of rates of
corrosion or scale deposition
